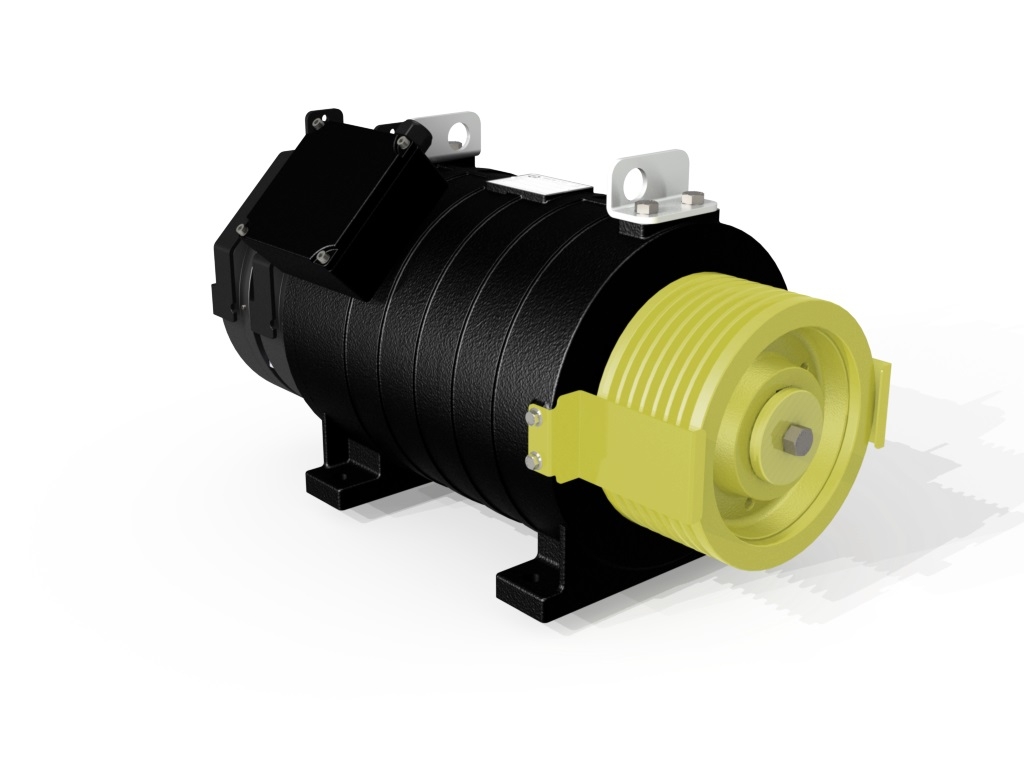

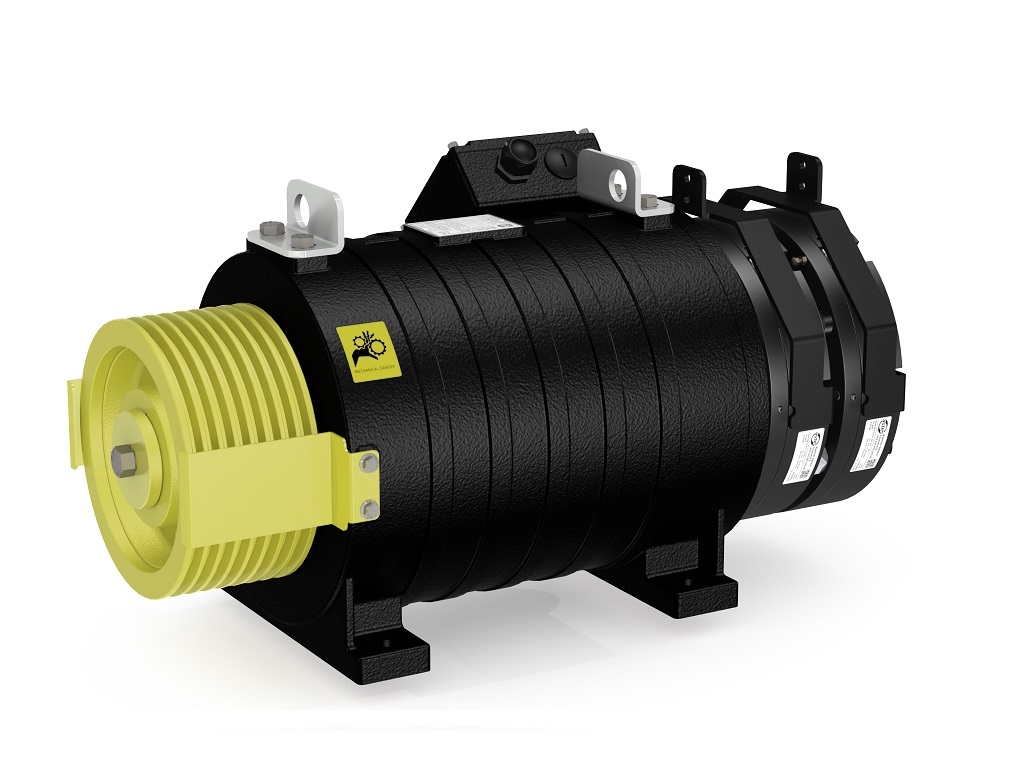

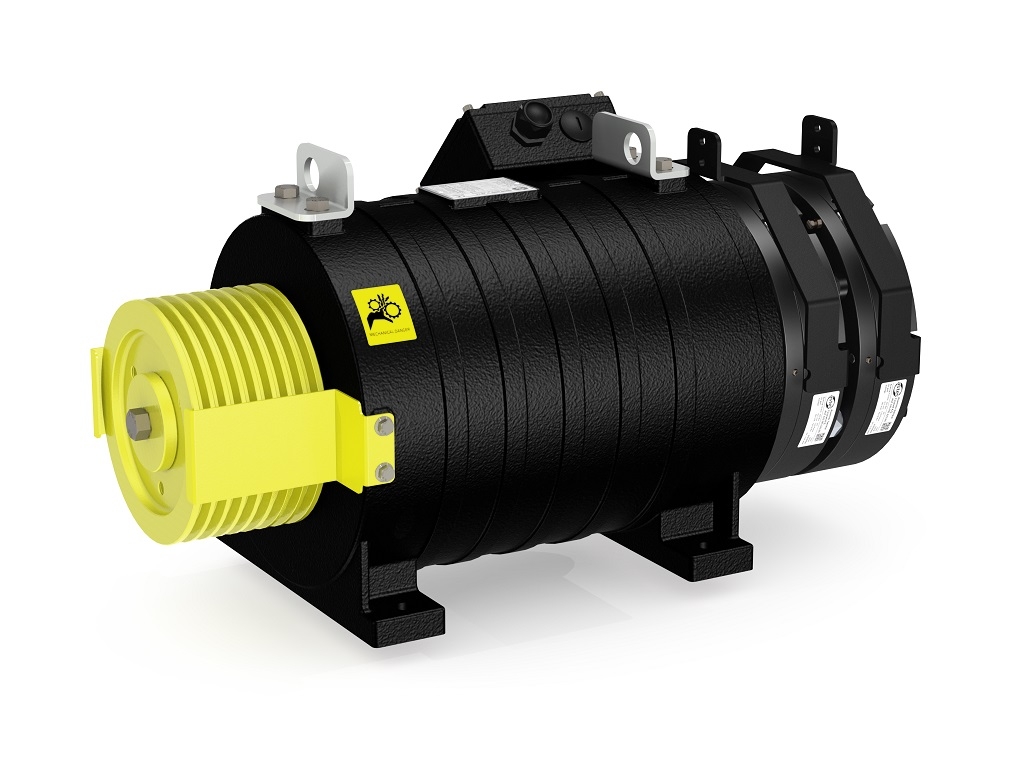

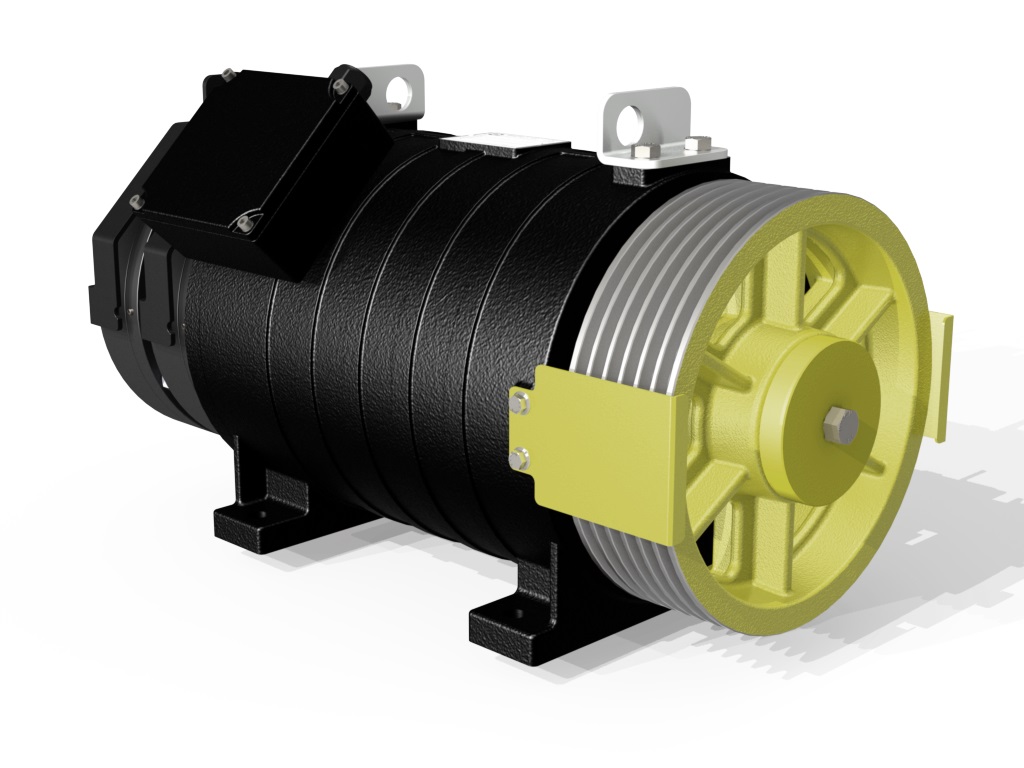

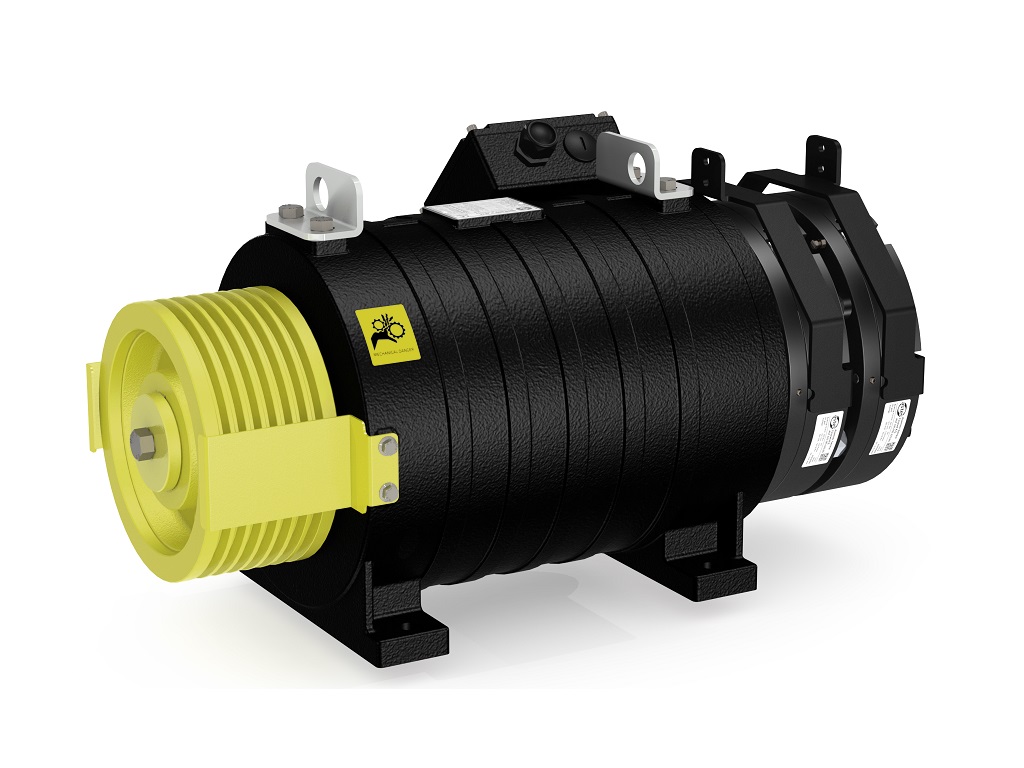

A-175 Gearless Machine
-
TECHNICAL INFORMATION
-
Model
Torq Load Speed Roping Current R.P.M. Frequance Poles Sheave/Pitch/ Groove Brochure Technical
DrawingA175.400.1250.100 400 Nm
1250 kg
1,00 m/s
2 / 1
16,5 A
180
66 Hz
44
210 x 7 x 8 / 14 / 45°
A175.400.1250.160 400 Nm
1250 kg
1,60 m/s 2 / 1
28,9 A
290
106,33 Hz
44
210 x 7 x 8 / 14 / 45°
A175.525.1600.100 525 Nm
1600 kg
1,00 m/s
2 / 1
20,0 A
180
66 Hz
44
210 x 8 x 8 / 14 / 45°
A175.525.1600.160 525 Nm
1600 kg
1,60 m/s
2 / 1
34,5 A
290
106,33 Hz
44
210 x 8 x 8 / 14 / 45°
A175.400.1000.100 400 Nm
1000 kg
1,00 m/s
2 / 1
16,5 A
160
58,67 Hz
44
240 x 6 x 8 / 14 / 45°
A175.400.1000.160 400 Nm
1000 kg
1,60 m/s
2 / 1
28,9 A
255
93,5 Hz
44
240 x 6 x 8 / 14 / 45°
A175.500.1250.100 500 Nm
1250 kg
1,00 m/s
2 / 1
20,0 A
160
58,67 Hz
44
240 x 7 x 8 / 14 / 45°
A175.500.1250.160 500 Nm
1250 kg
1,60 m/s
2 / 1
34,5 A
255
93,5 Hz
44
240 x 7 x 8 / 14 / 45°
A175.600.1600.100 600 Nm
1600 kg
1,00 m/s
2 / 1
21,5 A
160
58,67 Hz
44
240 x 8 x 8 / 14 / 45°
A175.600.1600.160 600 Nm
1600 kg
1,60 m/s
2 / 1
36,5 A
255
93,5 Hz
44
240 x 8 x 8 / 14 / 45°
A175.400.0800.100 400 Nm
800 kg
1,00 m/s
2 / 1
14,5 A
120
44 Hz
44
320 x 5 x 8 / 14 / 40°
A175.400.0800.160 400 Nm
800 kg
1,60 m/s
2 / 1
25,5 A
190
69,67 Hz
44
320 x 5 x 8 / 14 / 40°
A175.500.1000.100 500 Nm
1000 kg
1,00 m/s
2 / 1
17,5 A
120
44 Hz
44
320 x 6 x 8 / 14 / 40°
A175.500.1000.160 500 Nm
1000 kg
1,60 m/s
2 / 1
31,0 A
190
69,67 Hz
44
320 x 6 x 8 / 14 / 40°
A175.600.1250.100 600 Nm
1250 kg
1,00 m/s
2 / 1
18,0 A
120
44 Hz
44
320 x 7 x 8 / 14 / 40°
A175.600.1250.160 600 Nm
1250 kg
1,60 m/s
2 / 1
32,0 A
190
69,67 Hz
44
320 x 7 x 8 / 14 / 40°
A175.800.1600.100 800 Nm
1600 kg
1,00 m/s
2 / 1
26,5 A
120
44 Hz
44
320 x 8 x 8 / 14 / 40°
A175.800.1600.160 800 Nm
1600 kg
1,60 m/s
2 / 1
46,0 A
190
69,67 Hz
44
320 x 8 x 8 / 14 / 40°
Motor Max. Static Load Brake 380 VAC / S3 %40 ED (2/1) 7000 kg 200 VDC
-
-
